Detailed Product Description
Tiem Unit Parameter
Chassis EQ1051T51DJ3A

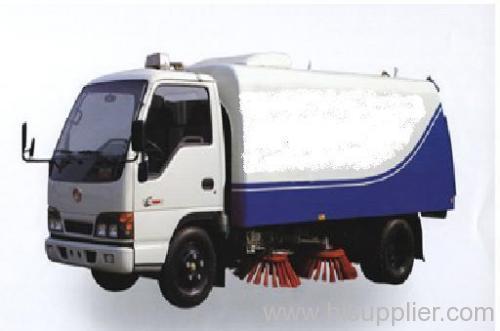

Product Name DongFeng XiaoBaWang Sweeper
Volume m3 2.5-3

GVW kg 5300
Cab Weight 3755
Overall Dimension mm 5650×1980×2200
Wheelbase 3300
Track base front 1380\1506
rear 1458\1466
Approch/departure angle 23/20
tyre 6 pcs/ 6.50-16 10PR
Emission/HP L/ps 3707/70(95hp)
Mass Speed km/h 90
Engine Diesel CY4100ZLQ YUNNEI EuroII 95hp
Special Function Mass sweep width(mm):3200
Mass sweep area(m2/h):4-6
Sweeping rate:90% lifting control:hydraulic/ electrical
Mass Sweeping Speed(km/h):3-25
Discharging Angle(0):45 Spraying Quantity:6pcs
Mass Sweeping Granularity:diameter 120
Volume of the stainless garbage box, water tank:0.8-1m3
Height from the floor when discharging(mm):800
Mass Climbing Angle:30%
Sweeping Noise:79.bdB(A)
